Very Busy (VB) Mail Order
Do the housekeeping required to setup your project.
This includes:
- Creating a New Project Directory
- Saving the Form
- Saving the Project File
In addition to the main module, there are three additional forms and a module so add these components and save the project so that all of the pieces are properly named and are stored in the project directory.
Specifications
This program will generate invoices for each customer, detailing each item selected. The program will ask for customer information and start a new invoice. Note that the customer information is disabled until the invoice is completed or cancelled. Disabling the Frame effects all of the customer information. Proceed with the selection of each item. At anytime you can display a summary of the invoice, but printing the form will close the order. You can also Cancel the order, which also completes the invoice, but marks it cancelled.

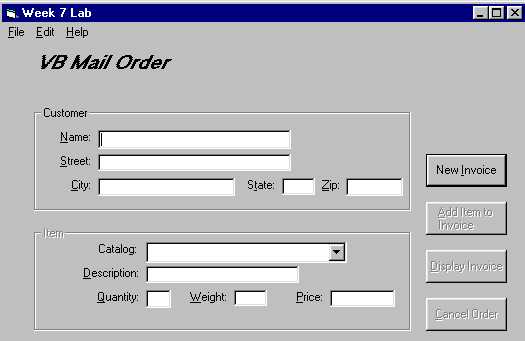

The main form contains a number of TextBoxes. These controls are edited in the various Command Button event handlers, but there is no code tied directly to any of these controls.This is also true of the Catalog ComboBox. This control is initialized at design time and will contain the following entries:
Odds and Ends
Solutions
Camping Needs
ToolTime
Spiegel
The Outlet
The Large Size
Requesting a new invoice expects that the customer information has been entered. The TextBoxes are edited to make sure SOMETHING is present, and if so, begin the new invoice and enable the item selection portion of the form.
Private Sub cmdNewInvoice_Click()
If txtName.Text = "" Or txtStreet.Text = "" Or txtCity.Text = "" _
Or txtState.Text = "" Or txtZip.Text = "" Then
MsgBox "Please enter all of the customer information.", _
vbOKOnly, "Input Needed"
txtName.SetFocus
Exit Sub
End If
PrintInvoiceHeadings
cmdNewInvoice.Enabled = False
fraCustomer.Enabled = False
fraItem.Enabled = True
cmdDisplayInvoice.Enabled = True
cmdAdd.Enabled = True
cmdCancelOrder.Enabled = True
End Sub
Adding an item to the invoice involves editing the input fields and then calling the Utility Procedures to complete the Item Add resuest. Here are the Utility Procedures:
Private Sub CalculateItem()
Dim intQuantity As Integer
Dim intWeightValue As Integer
Dim sngPrice As Single
Dim sngItemAmount As Single
Dim strFormattedExtPrice As String
Dim strFormattedPrice As String
intQuantity = Val(txtQuantity.Text)
intWeightValue = Val(txtWeight.Text)
sngPrice = Val(txtPrice.Text)
sngItemAmount = intQuantity * sngPrice
m_sngTotalWeight = m_sngTotalWeight + (intQuantity * intWeightValue)
m_sngTotalAmountDue = m_sngTotalAmountDue + sngItemAmount
strFormattedExtPrice = FormatCurrency(sngItemAmount)
strFormattedPrice = FormatCurrency(sngPrice)
Printer.Print _
Tab(6); cboCatalog.Text; _
Tab(21); txtDescription.Text; _
Tab(43 - Len(txtQuantity.Text)); txtQuantity.Text; _
Tab(52 - Len(strFormattedPrice)); strFormattedPrice; _
Tab(62 - Len(strFormattedExtPrice)); strFormattedExtPrice
End Sub
Private Sub ClearOrderControls()
cboCatalog.ListIndex = -1
cboCatalog.Text = ""
txtDescription.Text = ""
txtQuantity.Text = ""
txtWeight.Text = ""
txtPrice.Text = ""
End Sub
The DisplayInvoice Button performs some calculations and sets some frmSummary public variables before passing control to the summary form.
Private Sub cmdDisplayInvoice_Click()
Dim sngShipAndHandleTotal As Single
Dim sngTax As Single
Dim sngFinalTotal As Single
Const sngTaxRate As Single = 0.08
frmSummary.lblName.Caption = txtName.Text
frmSummary.lblAddress.Caption = txtStreet.Text
frmSummary.lblCityStateZip = _
txtCity.Text & ", " & _
txtState.Text & " " & _
txtZip.Text
With frmSummary
.lblAmountDue.Caption = FormatCurrency(m_sngTotalAmountDue)
'Calculate the tax for this order
If UCase(txtState.Text) = "CA" Then
sngTax = m_sngTotalAmountDue * sngTaxRate
End If
.lblSalesTax.Caption = FormatCurrency(sngTax)
.lblSubtotal.Caption = _
FormatCurrency(m_sngTotalAmountDue + sngTax)
sngShipAndHandleTotal = sngCalcShipHandle(m_sngTotalWeight)
.lblShipping.Caption = FormatCurrency(sngShipAndHandleTotal)
.lblTotalDue.Caption = _
FormatCurrency(m_sngTotalAmountDue + sngTax + sngShipAndHandleTotal)
End With
frmSummary.Show vbModal
End Sub
Cancelling and invoice will close out the print job by writing Cancelled on the invoice and closing the document. The process double checks to make sure that this is really what you wanted to do, and also prepares for a new customer invoice.
Private Sub cmdCancelOrder_Click()
Dim intResponse As Integer
intResponse = _
MsgBox("Are you sure you want to cancel this order?", _
vbYesNo, _
"Response Required")
If intResponse = vbNo Then
Exit Sub
End If
Printer.Print
Printer.Print
Printer.Print , , "ORDER CANCELLED"
Printer.EndDoc
ClearForm
cmdNewInvoice.Enabled = True
fraCustomer.Enabled = True
fraItem.Enabled = False
cmdAdd.Enabled = False
cmdDisplayInvoice.Enabled = False
cmdCancelOrder.Enabled = False
End Sub

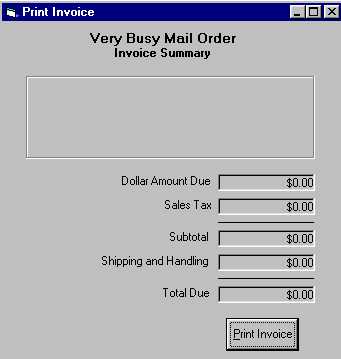

The code associated with this form is all tied to the Print Button. It's function is to complete the order, and reset the controls on the main form to prepare for the next customer invoice.
Private Sub cmdPrint_Click()
Printer.Print
Printer.Print
Printer.Print Tab(30); "Total Price";
Printer.Print Tab(62 - Len(lblAmountDue.Caption)); lblAmountDue.Caption
Printer.Print Tab(30); "Tax";
Printer.Print Tab(62 - Len(lblSalesTax.Caption)); lblSalesTax.Caption
Printer.Print Tab(30); "Shipping and Handling";
Printer.Print Tab(62 - Len(lblShipping.Caption)); lblShipping.Caption
Printer.Print Tab(30); "Total Due";
Printer.Print Tab(62 - Len(lblTotalDue.Caption)); lblTotalDue.Caption
Printer.EndDoc
With frmMain
.mnuFileCatalogList.Enabled = True
.fraCustomer.Enabled = True
.cmdNewInvoice.Enabled = True
.fraItem.Enabled = False
.cmdNewInvoice.Enabled = True
.cmdAdd.Enabled = False
.cmdDisplayInvoice.Enabled = False
.cmdCancelOrder.Enabled = False
End With
ClearSummaryForm
frmSummary.Hide
frmMain.Show
End Sub
Private Sub ClearSummaryForm()
lblName.Caption = ""
lblAddress.Caption = ""
lblCityStateZip.Caption = ""
lblAmountDue.Caption = ""
lblSalesTax.Caption = ""
lblSubtotal.Caption = ""
lblShipping.Caption = ""
lblTotalDue.Caption = ""
End Sub
The code for the About form is trivial. Simply Show the Form:
frmAbout.Show vbModal
This is the entire contents of modMain. It drives the Splash Screen followed by the
start of frmMain.
Option Explicit
Private Declare Sub Sleep Lib "kernel32" (ByVal dwMilliseconds As Long)
Private Sub Main()
Splash frmMain, frmSplash, 3
End Sub
Private Sub Splash(MainForm As Form, SplashForm As Form, Time As Integer)
Load SplashForm
SplashForm.Show
SplashForm.Refresh
Load MainForm
Sleep Time * 1000
Unload SplashForm
MainForm.Show
End Sub
The Project Properties should have Sub Main() as the StartUp Object
This completes the lab
