Example for Week 6 - Step by Step

This program uses multiple forms and a module. The objective is to share variables between objects in the program. The main form will call a second form to accept user input. User will enter a date, and then the date form will call a function in the module to determine the day of the week represented by the user entered date. The date form will store the day of the week in a public variable, and then return to the main form. The main form will access and display the public variable maintained by the date form. The date form also maintains a static variable used to display the number of times the date form has been called.

Part 1 - Housekeeping / Overhead

Set the Project Name to Your Last Name | E06
Set the Form Name and Form Caption

Save the Project in your NEW Project directory

Add the Second Form

Project | Add Form
Set the Form Name (frmDate) and Form Caption (You decide)

Click on the Save Icon in the Tool Bar.
Make sure you name the form frmDate and that it is saved to the project directory

Part 2 - Building the Example Application

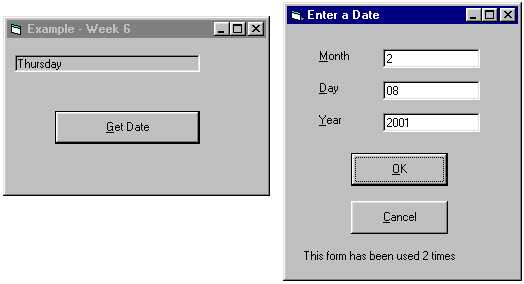

Build the User Interface for each form


On frmMain		On frmDate

lblDate	Caption Border Style	txtMonth txtDay txtYear	Associate with Labels for Keyboard Interface Text Property should be Blank
cmdGetDate	Caption Default	cmdOK	Caption Default
		cmdCancel	Caption Cancel
		lblCount	Caption Property should be Blank

Done with the user interface?

On both forms, open the code window and add the comment and Option Explicit

Make sure you save your work.
Run the program: Click on Run | Start With Full Compile

With two forms, this does not buy you much as you can only test the main form.

You have completed the user interface, but some testing remains to be done.

Build the Event Handlers

The first step in coding is to establish the call between the main form and the subordinate form.

In frmMain, handle the cmdGetDate Click event.

Private Sub cmdGetDate_Click()
frmDate.Show vbModal

lblDate.Caption = "Not done yet"

End Sub

In frmDate, handle the cmdOK and cmdCancel by returning to the main form

Private Sub cmdCancel_Click()
frmDate.Hide

End Sub

Run the program and make sure that you can call the date form and then properly return to main.

Next, declare the public variable that will be shared between the main and date forms. Declare the variable in frmDate.

Option Explicit
Public strDayofWeek As String

This variable can only be declared in one place, but can be referenced from any part of the program

In frmMain, add some code to initialize the public variable.

Private Sub Form_Load()
frmDate.strDayofWeek = "Unknown"

lblDate.Caption = frmDate.strDayofWeek

End Sub

See how the reference to the public variable is fully qualified? You need to specify EXACTLY which variable you are referring too. You want strDayofWeek on frmDate. Also notice that when you type frmDate and press the dot, you get the dropdown containing all of the properties of the frmDate object. The public variable has become a property of the form.

In cmdOK_Click in frmDate add this assignment before the Hide method:

strDayofWeek = "Here is the date"

Replace this line in frmMain's cmdGetDate_Click

lblDate.Caption = "Not done yet"

with

lblDate.Caption = frmDate.strDayofWeek

Running the program should show that the public variable is shared between the forms.

At this point, the forms can talk to each other

Now it's time to implement the project objectives, which is to accept a date from the user and translate it into the proper day of the week. This code will be written as part of frmDate and a Utility module that we will write and add to the project. frmMain is complete.

First, I want to code the logic that will maintain a counter that tells us how many time the Date form has been called.

Private Sub Form_Activate()
    Static intCount As Integer

    intCount = intCount + 1

    lblCount.Caption = "This form has been used " & _
                                    FormatNumber(intCount, 0) & _
                                     IIf(intCount = 1, " time", " times")

End Sub

In frmDate's Activate event, declare a Static variable. This variable is initialized at zero, when the program starts, and unlike other Local variables, it maintains it's value between calls to the event handler.

Each time the Date form is Activated, add one to the count and then display a message on the form.

IIf(intCount = 1, " time", " times")

Any guesses? This is an inline If-Else statement. It is a function. The first parameter is a condition. When the condition evaluates to True, the second parameter is returned, otherwise the third parameter is returned. It is often called "The Conditional Statement" and it works really well in this situation.

Back to the Date function

The problem I need to solve is to translate the Month, Day, and Year that the user enters into a day of the week. VB has a function called Weekday. It accepts a date string in the format of MM/DD/YY and returns an integer representing the day of the week. I can translate the number to a day of the week using the following logic:

If intDayNumber = 1 Then
    strDayofWeek = "Sunday"
ElseIf intDayNumber = 2 Then
    strDayofWeek = "Monday"
ElseIf intDayNumber = 3 Then
    strDayofWeek = "Tuesday"
ElseIf intDayNumber = 4 Then
    strDayofWeek = "Wednesday"
ElseIf intDayNumber = 5 Then
    strDayofWeek = "Thursday"
ElseIf intDayNumber = 6 Then
    strDayofWeek = "Friday"
ElseIf intDayNumber = 7 Then
    strDayofWeek = "Saturday"
Else
    strDayofWeek = "*Error*"
End If

Fairly simple logic. Simple enough, yet this is something that I may need to use over and over. I need to package this function so that I can use it again if necessary. I will package this function in a Module.

Add the Module to the Project

Project | Add Module
Select New
Set the Module Name (modDate)
Open the code and add a comment and Option Explicit
Click the Save icon and make sure that the module gets saved in the project directory

Wrap a function around the code that translates a Day Number into a Day String

Public Function strDayName(intDayNumber As Integer) As String
Dim strDayofWeek As String

' Translation code goes here

strDayName = strDayofWeek

End Function

This function is Public, so it can be called from anyplace in the project.

cmdOK_Click in frmDate needs only to:

Format the user input into a date that look like MM/DD/YY
Use the Weekday function to get the day of the week in an integer format
Pass this variable to strDayName and get the day of the week back in the string format
Put that result in the public variable
Return to the main form

It's easier than it sounds!

This will reformat the string:

Dim strDateString As String

strDateString = Trim(txtMonth.Text) & "/" & _
Trim(txtDay.Text) & "/" & _
Trim(txtYear.Text)

This does an edit check to make sure the user entered a real date:

If IsDate(strDateString) = False Then
MsgBox "Enter a valid date"
Exit Sub
End If

Here is the translation of the Date to a Day Number using the Weekday function that comes with VB. Because the Weekday function returns an integer, it can be passed directly to the function called from the modDate Module. he result can go directly into the Public Variable.

strDayofWeek = strDayName(Weekday(strDateString))

That does it! Running the program should result in you entering a date on frmDate, and when you click on OK, you return to the main where the day of the week will be displayed.

Only one more step that is really just a cosmetic and mostly for the convenience of the user. That is to provide some initial values when invoking frmDate.

In frmDate_Load, get the current date, then use the Month, Day, and Year functions to initialize the Text Boxes on the form.

Private Sub Form_Load()
    Dim strSaveM As String
    Dim strSaveD As String
    Dim strSaveY As String

    Dim dtmToday As Date

    dtmToday = Date

    strSaveM = Month(dtmToday)
    strSaveD = Day(dtmToday)
    strSaveY = Year(dtmToday)

    txtMonth.Text = strSaveM
    txtDay.Text = strSaveD
    txtYear.Text = strSaveY

End Sub

How would the program be different if this code was put in the Activate event? What if frmDate was Unloaded rather that Hidden as a means of returning to the main?

Often, the Shared Public variables are stored in a project module, but in this case, the module created is more of a utility module than a project support module. The goal in using this module was to begin a module that contained date related functions. Placing the Shared Public variable on frmDate was fine as it make frmDate a component that returns a day of the week through a public variable.

A couple of thoughts before this example is complete.

Public Variable can only be declared in one place

Object.Property format is used to refer to a public variable. This demonstrates how a public variable on a form is really a property of that form

Static Variables are Local so they are protected from project level changes
